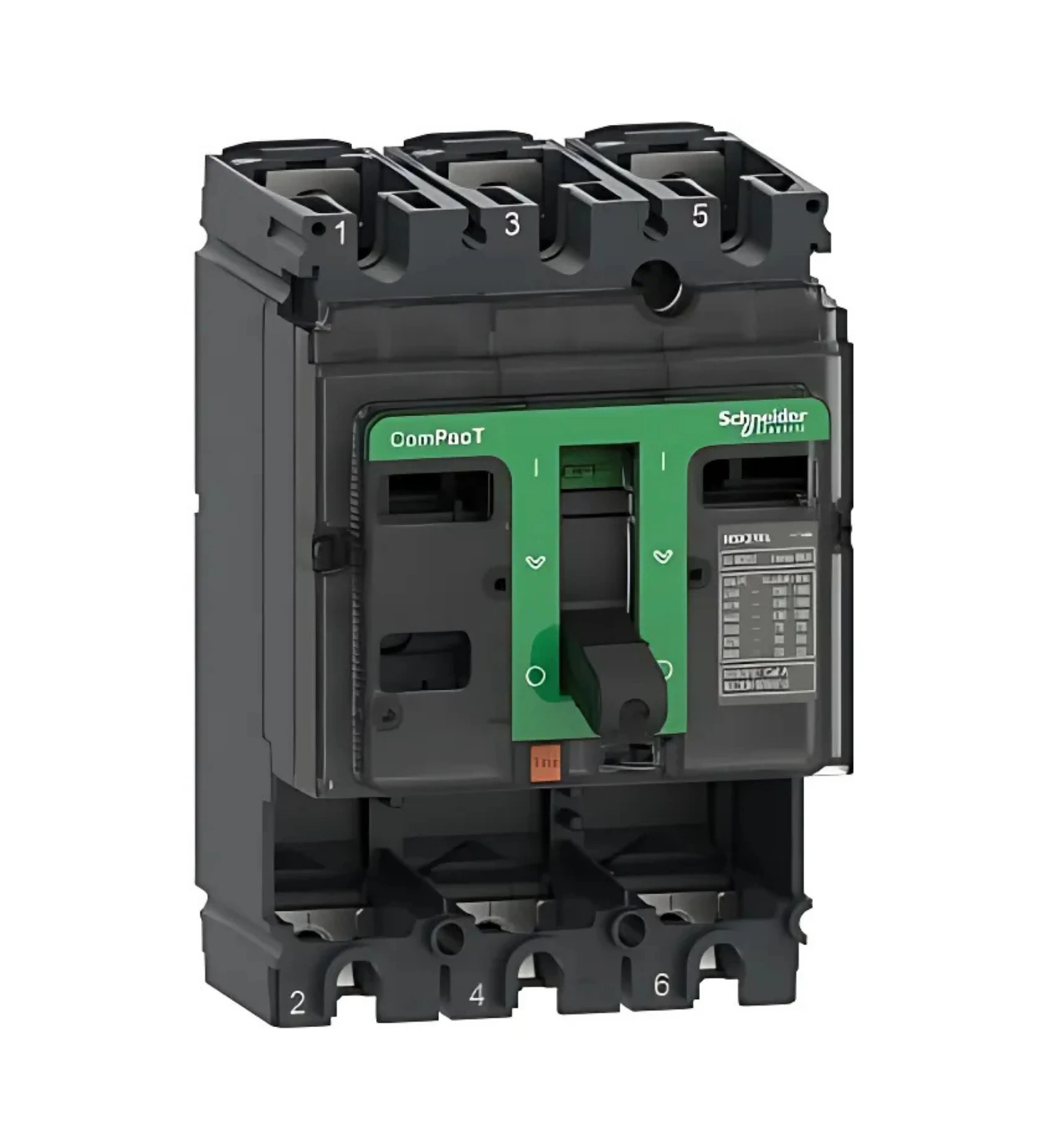

Is a basic frame circuit breaker from Schneider Electric's ComPacT NSX250B series. It features a 3-pole configuration with a frame rating of 250A and a breaking capacity of 25kA at 415VAC (50/60 Hz). Designed for distribution applications, this model does not include a trip unit, allowing for customization based on specific protection requirements. It supports fixed mounting on a backplate, with front connections for both line and load sides. The breaker complies with IEC 60947-2 standards, offering a rated insulation voltage of 800V AC and an impulse withstand voltage of 8kV. It boasts mechanical durability of 20,000 cycles and electrical durability up to 10,000 cycles at 440V AC.
FICHE TECHNIQUE Pour ce produit...
